Overview

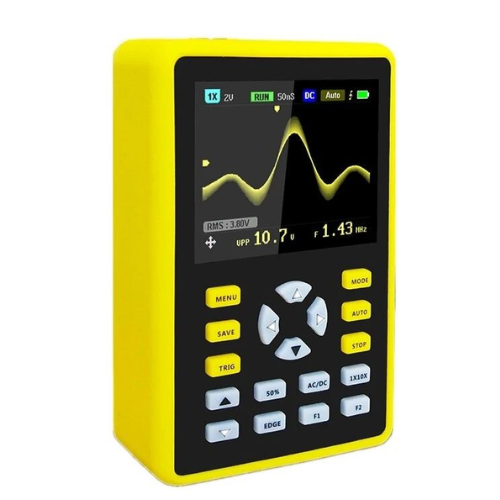

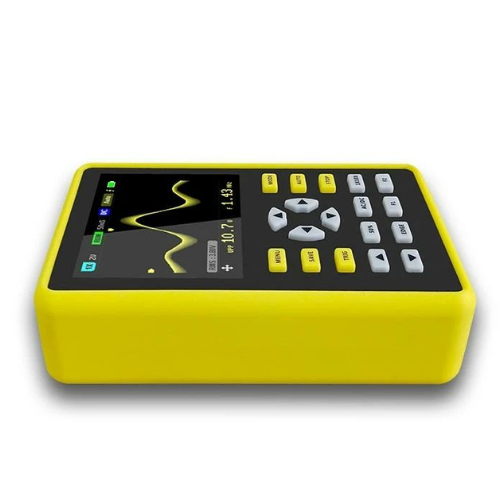

Hospitality Enviro Tech’s handheld digital oscilloscope with 100MHz bandwidth and advanced triggering delivers precision, portability, and durability for engineers, technicians, and researchers. Equipped with a powerful waveform manager, this oscilloscope enables file browsing, parameter review, and easy waveform handling, making it more flexible than traditional desktop models. Its complete trigger functionality supports automatic, single, and normal modes, ensuring accurate analysis of digital, analog, and non-periodic signals. The one-click automatic adjustment optimizes signals instantly, reducing setup time and improving measurement accuracy.
Features
- Complete trigger functions with automatic, single, and normal modes
- Tests non-periodic signals, digital logic signals, and cycle analog signals
- Powerful waveform manager with browsing, viewing, deletion, and measurement support
- One-click automatic adjustment for fast signal centering and accuracy
- High-efficiency fuzzy control algorithm ensures precision adjustments
- 100MHz analog bandwidth for versatile electrical signal measurement
- Reliable for design, debugging, and research in communication and power systems
- Supports DIY production, education, car repair, and appliance servicing
- Engineering debugging tool for oscillation, amplifier, inverter, switch, PWM, and bus circuits
- Intelligent anti-burn technology with built-in high-voltage protection
- Can tolerate continuous 400V and peak 600V without damage
- Compact handheld form factor with TFT display for portability
Technical Specifications
| Type | Digital |
| Channels | 1 |
| Bandwidth | 100 MHz |
| Sample Rate (Max) | 500 MSa/s |
| Resolution (A/D) | 8-bit |
| Trigger Modes | Automatic, Single, Normal |
| Trigger Function | Edge, Video, Alternate; Supports car ignition, infrared remote signals, sinusoidal signals |
| Display Size | 2.4-inch TFT LCD |
| Display Resolution | 320 x 240 pixels |
| Waveform Manager | Thumbnail browsing, parameter viewing, page turning, deletion |
| Automatic Adjustment | One-click signal centering with fuzzy control algorithm |
| Protection | Built-in anti-burn with 400V continuous and 600V peak tolerance |
| Engineering Debugging | DIY, Oscillation, Amplifier, Inverter, PWM driver, Mains, Switch, Bus circuits |
| Highest Test Voltage | 1X: 80V, 10X: 800V |
| Cursor | Position XY, Trigger Y |
| Power Supply | Rechargeable battery / external adapter |
| Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 7.1 in × 3.5 in × 1.8 in (18 cm × 9 cm × 4.5 cm) |
| Weight | 0.88 lb (0.4 kg) |
