Overview

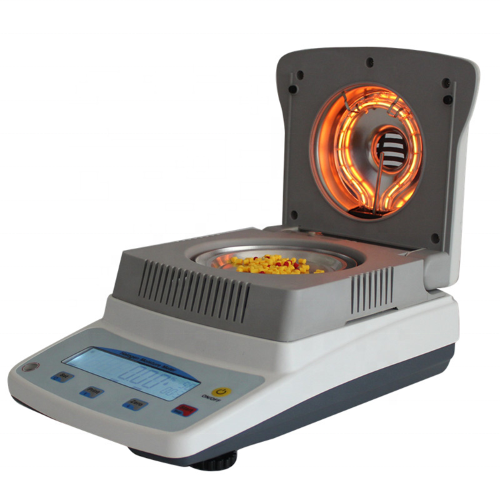

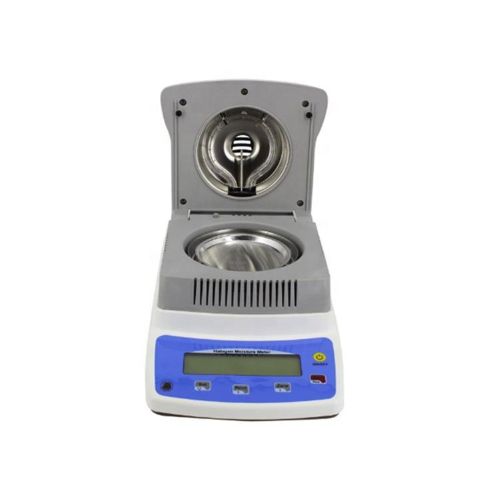

This advanced halogen moisture meter is designed for rapid and precise moisture measurement, addressing issues such as cracking, bubbling, and shrinking caused by excess moisture in raw materials during production, injection molding, and molding processes in the plastic industry. Built with a durable, no-moving-parts exterior, it requires no preset measuring sample or time. The weighing system incorporates advanced technology to ensure stability and prevent aging issues common in standard magnetic sensors. Its heating system uses a halogen heat device for efficient and user-friendly operation, eliminating the need for specialized training. The device displays accurate measurement results in real time and features instant printing at the press of a key. A standard RS-232 interface and dedicated software enable seamless online operation, with data collection, analysis, storage, and printing capabilities. Widely applied across the plastic industry, it is suitable for testing raw materials, semi-finished products, and finished products including polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polystyrene (PS), ABS resin, nylon (PA), polycarbonate (PC), polyformaldehyde (POM), modified polyphenylene oxide, PET, polyphenylene sulfide (PPS), liquid crystal polymer (LCP), PEEK, PEK, PES, PETG, polysulfone (PSF), particles, auxiliaries, master batch, wood-plastic composites, and wood flour.
Features
- Designed exclusively for use in the plastic industry
- Fully automatic testing mode
- Comes with dedicated software and a built-in micro-printer as standard
- Enables quick testing before and after sample dehumidification
- Supports both particle and powder samples in standby operation
- High efficiency with rapid testing speed
Technical Specifications
| Maximum Weighing Range | 100 g (3.53 oz) |
| Reading Accuracy | 0.001 g (0.000035 oz) |
| Moisture Readability (>10 g) | 0.01% |
| Scope of Moisture Measurement | 0.01% to 100% |
| Pan Size | 4.33 in (110 mm) diameter |
| Heat Source | Halogen Lamp |
| Communication Interface | Standard RS-232 Interface |
| Heating Time Range | 1 to 99 min |
| Operating Temperature Range | 50 °F to 86 °F (10 °C to 30 °C) |
| Relative Humidity | ≤80% RH |
| Heating Temperature Range | Room Temperature to 320 °F (Room Temperature to 160 °C) |
| Net Weight | 7.28 lb (3.3 kg) |
| Size/Dimension | Not specified |
