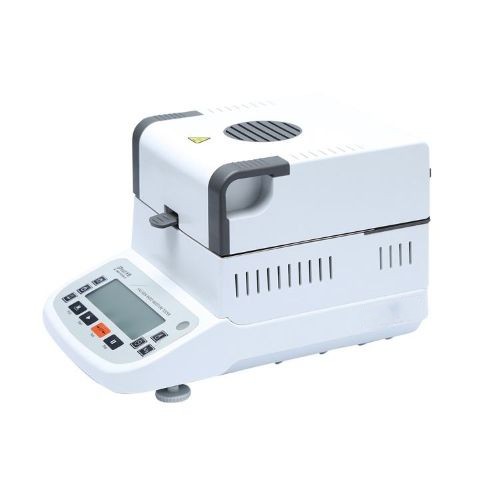

Overview
This equipment is suitable for use in research institutes, universities, metrology centers, and various industrial enterprises. It is widely applied across multiple sectors, including plastics, food, feed, powder, tobacco, paper, dehydrated vegetables, meat, noodles, flour, cookies, pies, aquatic products, tea, beverages, grains, chemical raw materials, pharmaceuticals, and textile raw materials.
It is designed to accurately measure the free moisture content in a wide range of sample types, ensuring reliable results for quality control, research, and production processes.
Features
- Instead of the GB oven method, the use is very wide, suitable for various industries’ moisture measurement.
- No installation and debugging, no training, no cumbersome process — ready to use right after unpacking.
- Simple operation, short detection time, and high work efficiency.
- Precise electromagnetic force weighing sensor ensures high measurement accuracy, long service life, and stable performance.
- Unique design of windproof cover makes the instrument’s weighing system more stable.

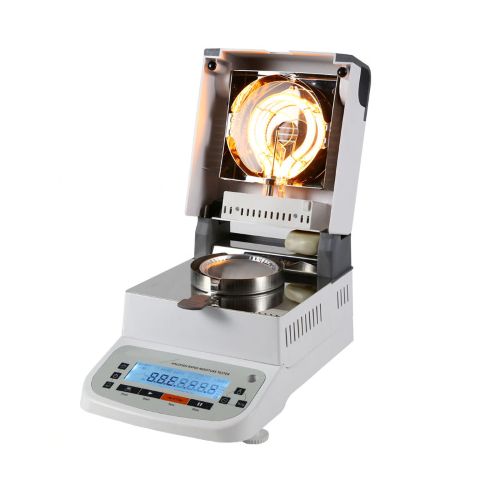

- Annular halogen lamp heating mode provides a uniform heating environment for samples.
- Advanced humidity control system to avoid interference caused by free moisture.
- Unique temperature control heating system ensures more accurate results; real-time curve display allows intuitive observation of moisture changes.
- Rich data display options — can show curve, time, real-time temperature, moisture, and solid content.
- Automatic determination process — no need for constant monitoring; includes measurement alarm reminder.
- Heating cavity made of pure stainless steel, high temperature resistant, and easy to clean.
- Equipped with RS232 communication interface for connecting printers, computers, and other peripheral devices.
Technical Specifications
| Weighing Accuracy | 0.005 g (0.00018 oz) |
| Load Cell | Strain sensor |
| Moisture Readability | 0.01 MC |
| Solid Content Moisture Readability | 0.0001 |
| Moisture Range | 0.01% to 100% |
| Solid Content Range | 100% to 0.01% |
| Heating Temperature Range | 104 °F to 320 °F (40 °C to 160 °C) |
| Principle | Thermal weight loss |
| Weighing Range | 120 g (4.23 oz) |
| Calibration Method | External weight calibration (100 g or 3.53 oz weight) |
| Heating Method | Ring halogen lamp heating |
| Heating Power | 500 W |
| Temperature Readability | 1 °C (1.8 °F) |
| Temperature Sensor | High-precision ultra-fine platinum and rhodium temperature sensor |
| Display Mode | Moisture content, solid content, drying rate, weight after drying, moisture regain, real-time temperature, graph |
| Shutdown Mode | Automatic, timing, manual |
| Time Setting | 0 to 99 minutes (1-minute interval) |
| Sample Pan | Ø 102 mm (4.02 in) stainless steel |
| Communication Interface | Thermal printing (directly print moisture value and solid content); Standard RS232 communication (connect to PC, printer, or other devices) |
| Voltage | 220 V at 50 Hz or 110 V at 60 Hz |
| Product Weight | 7.72 lb (3.5 kg) |
| Size (L x W x H) | 12.20 in x 7.87 in x 8.07 in (310 mm x 200 mm x 205 mm) |
