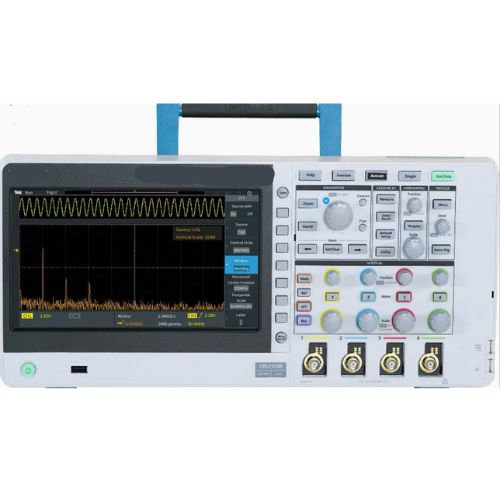

Features
- 4 analog channels with 200MHz bandwidth for detailed waveform analysis
- Real-time sampling up to 2GS/s for precise signal capture
- 9-inch TFT color LCD offers wide and clear display visuals
- Supports math operations, FFT, and advanced measurement functions
- USB and LAN connectivity for remote control and waveform storage
- Captures glitches as short as 3.5 ns with peak detect mode
Technical Specifications
| Type | Digital Storage Oscilloscope |
| Number of Channels | 4 |
| Bandwidth | 200 MHz |
| Maximum Sample Rate | 2 GSa/s (half-channel), 1 GSa/s (all channels) |
| Record Length | 5 Mpts |
| Vertical Sensitivity Range | 1 mV/div to 10 V/div |
| Vertical Resolution | 8 bits |
| Input Coupling | DC or AC |
| Input Impedance | 1 MΩ ± 1 %, 13 pF ± 1.5 pF |
| Maximum Input Voltage | 300 VRMS, peaks ≤ ±450 V |
| Acquisition Modes | Sample, Peak Detect, Average, Hi-Res, Roll |
| Math Modes | Add, Subtract, Multiply, FFT |
| Waveform Capture Rate | ≥ 500,000 wfms/s |
| Display Type | 9 in TFT color LCD |
| Display Resolution | 800 x 480 pixels |
| Power Supply Voltage | 100 to 240 V AC ±10% |
| Power Frequency | 47 to 63 Hz (100 to 240 V) or 360 to 440 Hz (100 to 132 V) |
| Power Consumption | 80 W maximum |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Product Weight | 9.2 lb (4.17 kg) |
| Product Dimensions | 16.25 in x 7.93 in x 5.04 in (41.28 cm x 20.15 cm x 12.81 cm) |
