Overview

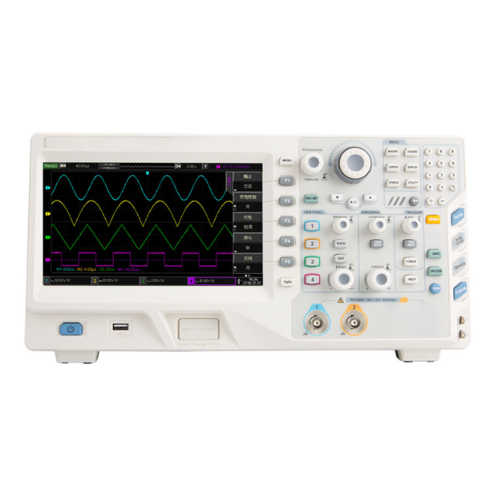

Hospitality Enviro Tech’s dual-channel digital storage oscilloscope is a high-performance test and measurement instrument designed for precision electronic diagnostics and advanced waveform analysis. With a 200 MHz analog bandwidth, 2.5 GS/s real-time sampling rate, and 70 Mpts storage depth, it ensures accurate signal capture and detailed waveform observation. The oscilloscope supports up to 35 automatic measurement parameters and provides advanced triggering modes for comprehensive signal evaluation. Its 256-level waveform grayscale display enables users to observe even low-probability events with clarity, while built-in mathematical operations and bus decoding functions make it highly versatile for modern applications. Designed to meet the needs of researchers, engineers, and repair technicians, this oscilloscope offers powerful measurement, data recording, and intuitive analysis features, ensuring precision and efficiency in testing environments. Whether for laboratories, R&D facilities, or electronic repair centers, this instrument delivers reliability and performance.
Features
- Dual-channel design for versatile testing applications
- High-speed real-time signal capture with deep storage depth
- Grayscale waveform display with fluorescent-like effect
- Advanced triggering functions for accurate signal isolation
- Multiple waveform recording and playback options
- Rich mathematical and logic operation capabilities
- Supports serial bus decoding for embedded systems analysis
- User-friendly interface with multiple connectivity options
Technical Specifications
| Analog Bandwidth | 200 MHz |
| Number Of Channels | 2 |
| Real-Time Sampling Rate | 2.5 GS/s |
| Waveform Capture Rate | 200,000 wfms/s |
| Time Base Range | 2 ns/div to 40 s/div |
| Storage Depth | 70 Mpts |
| Input Resistance | 1 MΩ ± 2% or 18 pF ± 3 pF |
| Vertical Sensitivity Range | 1 mV/div to 20 V/div (1 MΩ) |
| Waveform Recording | Up to 100,000 frames (single channel) |
| Automatic Measurement Parameters | Up to 35 kinds |
| Displayed Measurements | 5 simultaneous measurements |
| Measurement Statistics | Average, maximum, minimum, standard deviation, count |
| Frequency Meter | Hardware 6-bit |
| Trigger Types | Edge, Pulse Width, Runt, Oversize, N Edge, Delay, Timeout, Duration, Build/Hold, Slope, Video, Pattern |
| Serial Bus Decoding | RS232 or UART, I2C, SPI; optional USB, CAN, LIN, FlexRay |
| Waveform Operations | A+B, A–B, A×B, A/B, FFT, advanced operations, logic operations |

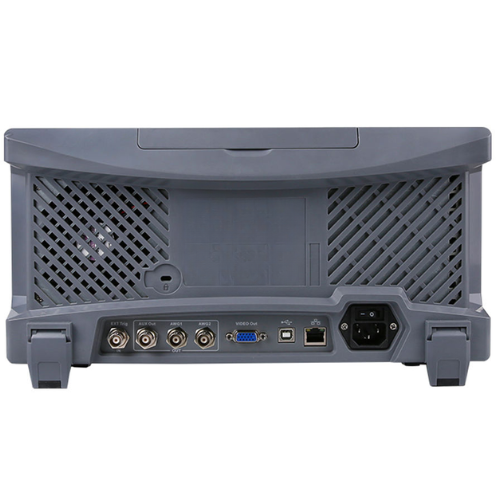

| Interfaces | USB-Host, USB-Device, LAN, EXT Trig, AUX Out (TrigOut or Pass/Fail), VGA |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 14.17 in × 7.87 in × 5.51 in (36 cm × 20 cm × 14 cm) |
| Weight | 6.6 lb (3 kg) |
