Overview

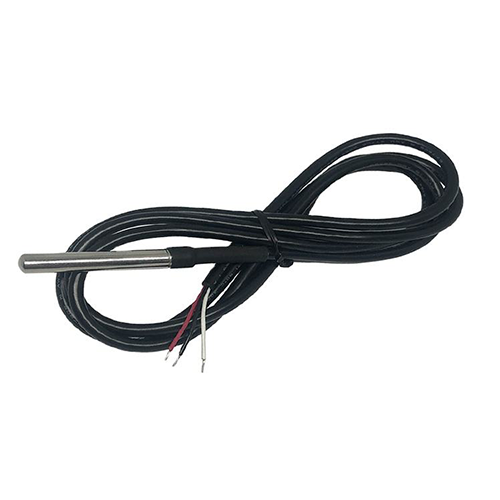

GAO Tek’s Digital Temperature Sensor Probe with Waterproof Stainless Steel Tube is designed for precise temperature measurement in various applications. This device is built with a durable SUS304 waterproof stainless steel housing, ensuring high reliability and a fast response time. It operates on the principle of a resistance sensor.
Features
- High accuracy and high reliability for precise measurements.
- Features a fast response time to temperature changes.
- Constructed with a waterproof SUS304 stainless steel tube.
- Based on a high-quality digital sensor chip for dependable performance.
- Offers a wide operating temperature range.

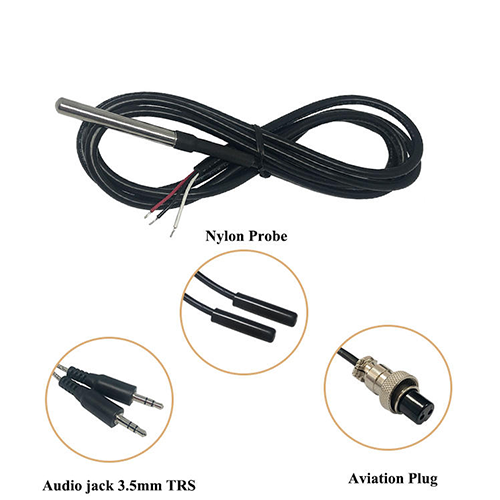

- Available with various connector types, including Audio Jack, Molex, JST, and DuPont.
- Customizable cable lengths are available (e.g., 3.28 ft or 1 m, 6.56 ft or 2 m, 9.84 ft or 3 m).
Technical Specifications
| Feature | Specification |
| Sensor Type | NTC Temperature Sensor |
| Theory | Resistance Sensor |
| Output | Digital Sensor |
| Mounting Type | Surface Mount, Board Mount |
| Power Supply | 3.0 V to 5.5 V DC |
| Material | SUS304 Stainless Steel |
| Connector Types | Audio Jack, Molex, JST, DuPont, CJT, etc. |
| Operating Temperature Range | -67 °F to +257 °F (-55 °C to +125 °C) |
| Accuracy | ±0.5 °C (from 14 °F to 185 °F or -10 °C to +85 °C) |
| Probe Dimensions | Φ0.24 in x 1.97 in (Φ6 mm x 50 mm), Φ0.27 in x 0.98 in (Φ7 mm x 25 mm), Customized |
| Cable Length | 3.28 ft (1 m), 6.56 ft (2 m), 9.84 ft (3 m), Customized |
