Overview

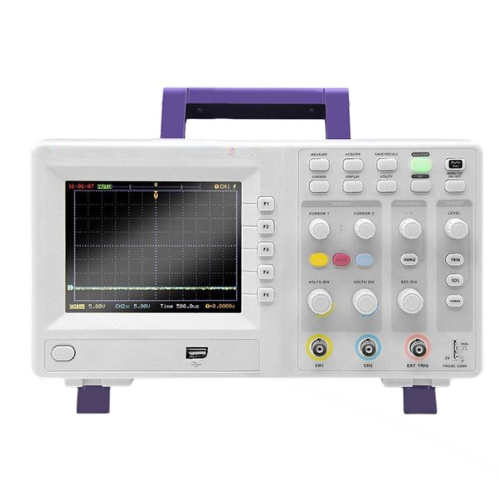

Compact dual-channel DSO with 1 GS/s rate, 7-inch TFT display, deep memory, USB support, and versatile trigger modes.
Features
- Dual-channel digital oscilloscope for versatile testing
- Wide bandwidth options with fast 1GS/s sample rate
- Deep memory storage for detailed waveform analysis
- Multiple trigger modes for accurate signal detection
- Large 7-inch color TFT LCD for clear waveform display
- Supports Y-T and X-Y modes for advanced visualization
- Waveform storage and recall with USB support

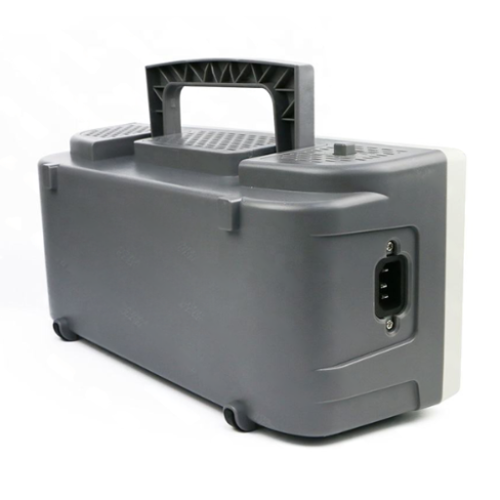

- Lightweight, portable design suitable for labs and field use
Technical Specifications
| Bandwidth Options | 50 MHz, 70 MHz, 100 MHz |
| Channels | 2 |
| Sampling Rate | 1 GS/s |
| Storage Depth | 25 kpts |
| Waveform Capture Rate | 2,000 wfms/s |
| Vertical Sensitivity | 1 mV/div to 20 V/div |
| Time Base Range | 2 ns/div to 50 s/div |
| Trigger Types | Edge, Pulse, Alternate |
| Display Modes | Y-T, X-Y |
| Storage Modes | Setup, Waveform, Bitmap |
| System Update | Via USB drive |
| Connectivity | USB OTG |
| Power Supply | 100 V to 240 V AC (45 Hz to 440 Hz) |
| Display | 7 in TFT LCD, WVGA (800 × 480, 64K color) |
| Product Color | White and Grey |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions (W × H × D) | 12.05 in × 5.79 in × 4.80 in (306 mm × 147 mm × 122 mm) |
| Net Weight | 4.85 lb (2.2 kg) |
