Overview

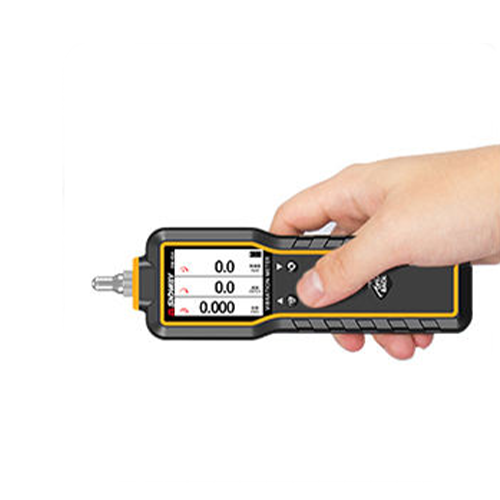

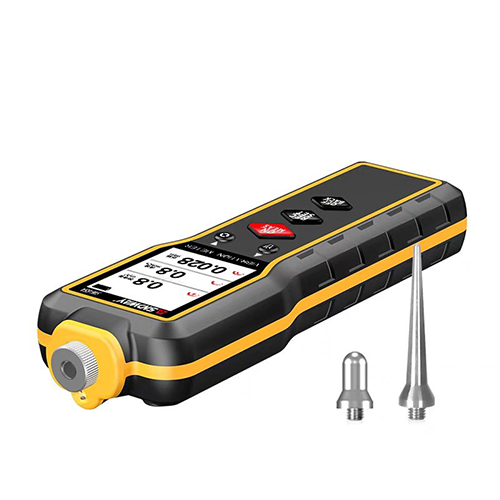

Hospitality Enviro Tech’s digital handheld vibration meter with data storage is designed for accurate measurement of displacement, velocity, and acceleration in industrial machinery. This device can store up to 200 sets of data for later review, features a clear LCD display, and offers IP54 protection against dust and splashes. Lightweight and easy to operate, it is ideal for on-site inspections, machinery diagnostics, and preventive maintenance.
Features
- Measures displacement, velocity, and acceleration
- Stores up to 200 sets of data
- IP54 protection for dust and splash resistance
- Large LCD display for clear readings
- Auto power-off to save battery life
- Compact, lightweight design for portability
- Simple one-hand operation
Technical Specifications
| Measurement Parameters | Displacement, velocity, acceleration |
| Displacement Range | 0.001 mm to 1.999 mm (0.00004 in to 0.0786 in) |
| Velocity Range | 0.01 mm/s to 199.9 mm/s (0.0004 in/s to 7.87 in/s) |
| Acceleration Range | 0.1 m/s² to 199.9 m/s² |
| Frequency Range | Low: 10 Hz to 1 kHz; High: 1 kHz to 15 kHz |
| Display | LCD |
| Data Storage | 200 sets |
| Protection Rating | IP54 |
| Power Supply | 4 × AAA batteries |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Product Weight | 0.66 lb (300 g) |
| Product Size | 6.30 in × 2.76 in × 1.18 in (160 mm × 70 mm × 30 mm) |
