Overview

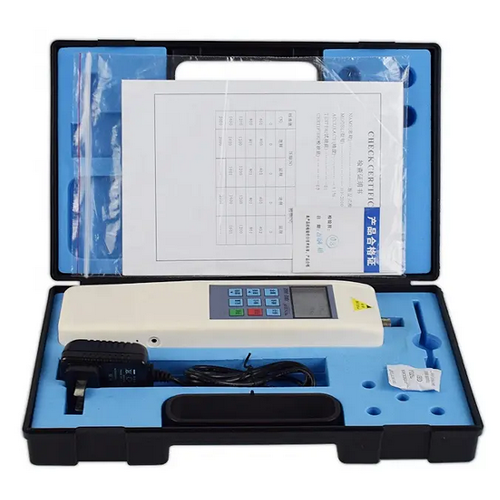

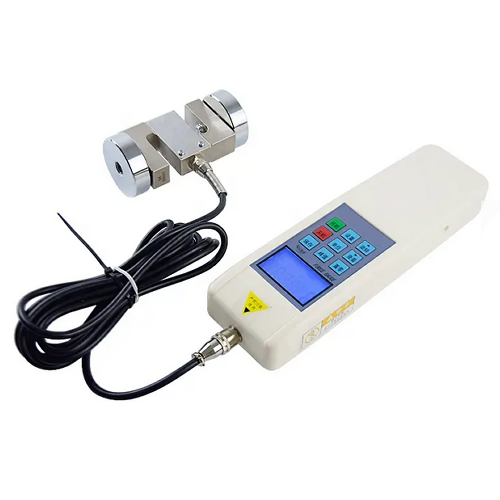

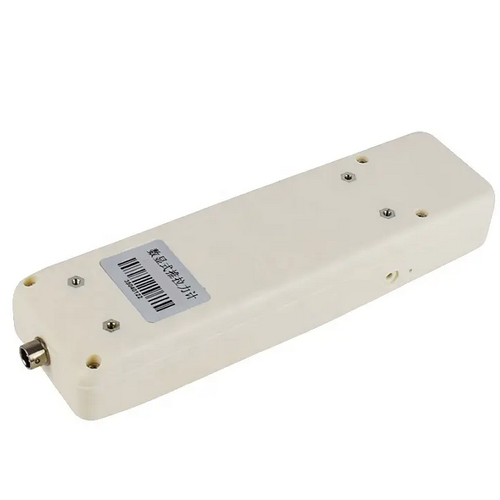

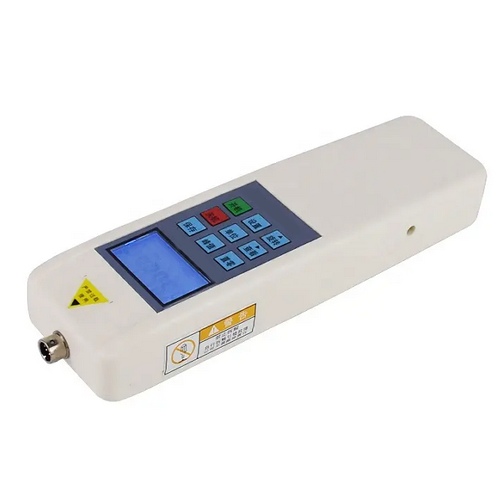

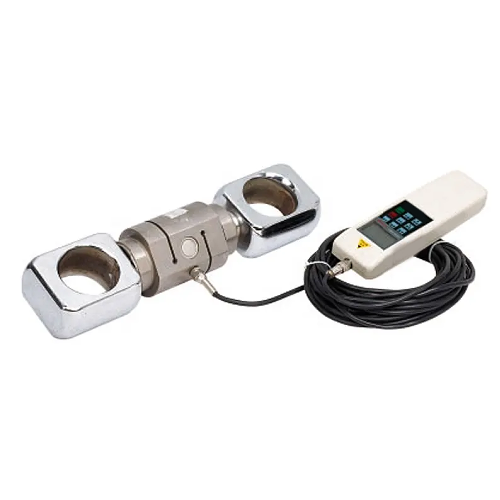

Hospitality Enviro Tech Digital Clamping Force Meter is a digital force gauge with a compact size and high accuracy. They are easy to operate and handy to carry out. Widely applied in electron, high & and low voltage electrical appliances, hardware, automobile parts, lighter and ignition systems, light industry, mechanical, textile, and so on to test pull or push load test, insertion force or pull and destructive experiment. This digital force gauge is a generation pulls the pressure measuring instrument.
Technical Specifications
| Peak Load Value | 2000 N |
| Indication Error | ±1% |
| Data Interface | RS232 nine-hole socket |
| Power | rechargeable batteries, charger (charging voltage 100 V to 240 V) |
| Sensor Structure | Stye or column sensor with high precision (external sensor) |
| Ambient Temperature | 41 °F to 95 °F (5 °C to 35 °C) |
| Transport Temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| Relative Humidity | 15% to 80% RH |
| Working Conditions | No hypocenter and corrosive medium |
| Load Division Value | 0.1 lb (100 g) |
| Size | 11 in x 7.87 in x 6.69 in (280 mm x 200 mm x 170 mm) |
| Gross Weight | 13.27 lb (6 kg) |
