Overview

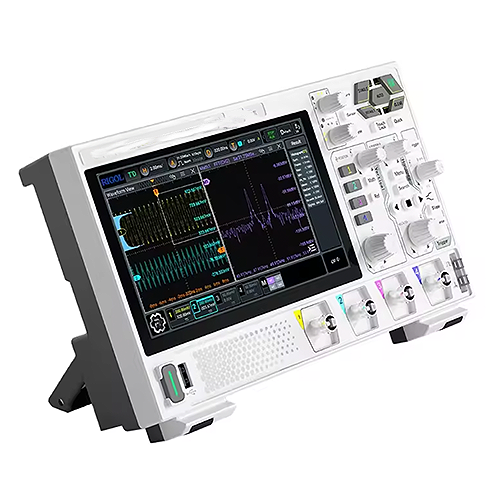

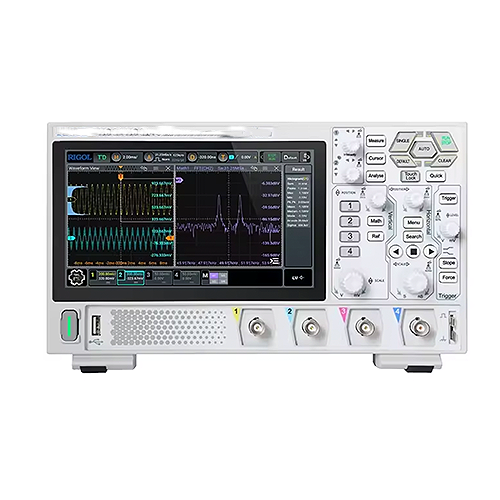

Hospitality Enviro Tech’s Desktop Digital Oscilloscopes with Touch Screen are designed to deliver high-resolution waveform capture, signal analysis, and data accuracy in a compact, cost-effective package. These advanced oscilloscopes provide up to 1,000,000 wfms/s waveform capture rate (in UltraAcquire Mode), 25 Mpts memory depth, and 12-bit resolution for superior precision and low-noise performance. Built for design, debugging, and testing applications, this series serves a wide range of professional needs across R&D and educational environments.
Features
- 12-Bit Resolution: Achieves up to 16x improvement in quantization precision.
- Type-C Power Interface: Enables convenient and efficient Type-C power supply.
- Sleek Compact Design: Maximizes workspace flexibility and portability.
- Versatile Interfaces: Supports remote operation, LAN, and HDMI connections.
Technical Specifications
| Parameter | HETBDO-101 (A) | HETBDO-101 (B) | HETBDO-101 (C) | HETBDO-101 (D) |
| Type | Digital Oscilloscope | |||
| Bandwidth | 70 MHz | 70 MHz | 100 MHz | 100 MHz |
| Analog Channels | 2 | 4 | 2 | 4 |
| External Trigger | Yes | N/A | Yes | N/A |
| Storage Depth (Upper Limit) | 25 Mpts (shared) | |||
| Sample Rate (Upper Limit) | 1.25 GSa/s (shared) | |||
| Waveform Capture Rate (Upper Limit) | 30,000 wfms/s (1,000,000 wfms/s in UltraAcquire Mode) | |||
| Vertical Resolution | 12-bit | |||
| Lowest Vertical Gear | 500 µV/div | |||
| Lowest Horizontal Gear | 2 ns/div | |||
| Frequency Meter | 3 to 6 | |||
| Accumulator | 48 | |||
| FFT | Yes | |||
| Digital Voltmeter | 3 Bits | |||
| Serial Decoding | Parallel, RS232, IC, SPI | |||
| Screen | 7-inch touch screen (1024×600) | |||
| Communication Interface | USB, LAN, HDMI | |||
| Power Supply Mode | Mains or mobile power | |||
| Power Supply Voltage | DC 12 V, 3 A | |||
| Power Consumption | ≤ 36 W | |||
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) | |||
| Instrument Size (W×H×D) | 10.45 in × 6.37 in × 3.05 in (265.35 mm × 161.75 mm × 77.38 mm) | |||
| Instrument Weight | 3.92 lb (1.78 kg) | |||
