Overview

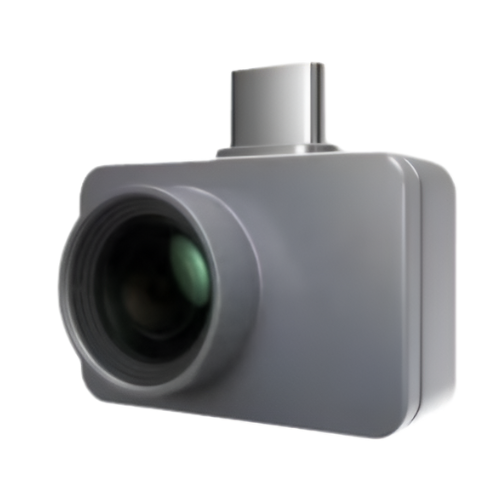

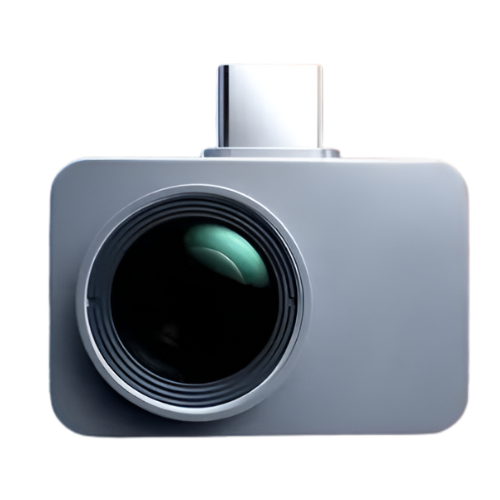

Hospitality Enviro Tech Compact Handheld Infrared Thermal Imager is a portable device designed for accurate temperature measurement and thermal imaging across various surfaces. It features a high-resolution 256×192 infrared sensor with adjustable emissivity from 0.01 to 1.00 and a fast 25Hz frame rate for real-time imaging. This device can measure temperatures from -4°F to 1112°F (-20°C to 600°C) and operates effectively in ambient temperatures between 14°F and 131°F (-10°C to 55°C). With a measurement distance of 0.66 to 16.4 ft (0.2m to 5m), a compact 1.66 oz (0.047 kg) weight, and a small package size, it is ideal for both indoor and outdoor thermal inspections.
Features
- Provides high-resolution 256×192 thermal imaging for clear temperature mapping.
- Adjustable emissivity for precise measurement on different surface types.
- Fast 25Hz frame rate ensures smooth, real-time thermal imaging.
- Wide temperature range from -4°F to 1112°F (-20°C to 600°C).
- Compact and lightweight design for easy portability and handling.
- Supports measurement from 0.66 to 16.4 ft (0.2m to 5m) distances.
- Operates reliably in ambient temperatures of 14°F to 131°F (-10°C to 55°C).
Technical Specifications
| Resolution | 256 × 192 |
| Frame Rate | 25Hz |
| Sensor Sensitivity | 40mk |
| Measurement Distance | 0.66 ~ 16.4 ft (0.2m ~ 5m) |
| Emissivity Range | 0.01 ~ 1.00 |
| Single Gross Weight | 1.66 oz (0.047 kg) |
| Single Package Size | 7.87 × 3.94 × 1.97 in (20 × 10 × 5 cm) |
| Temperature Range | -4°F ~ 1112°F (-20°C ~ 600°C) |
| Ambient Temperature | 14°F ~ 131°F (-10°C ~ 55°C) |
