Overview

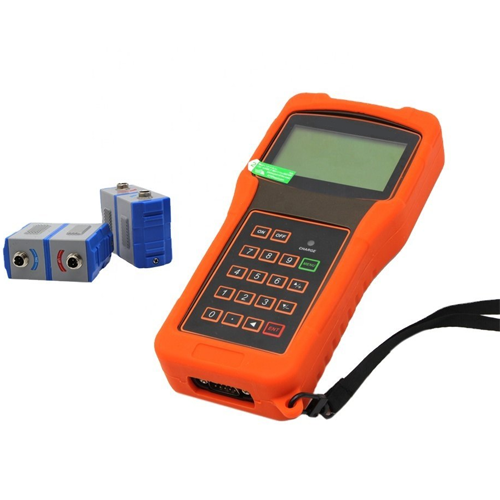

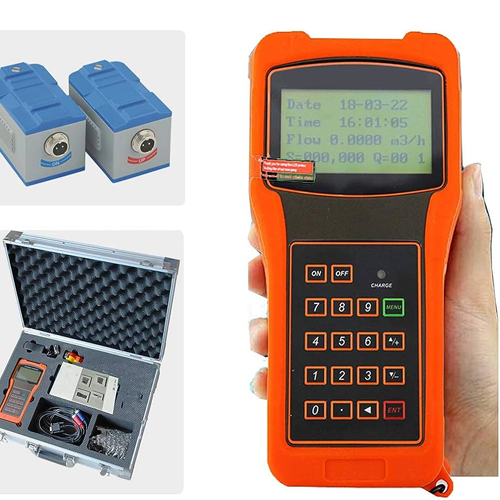

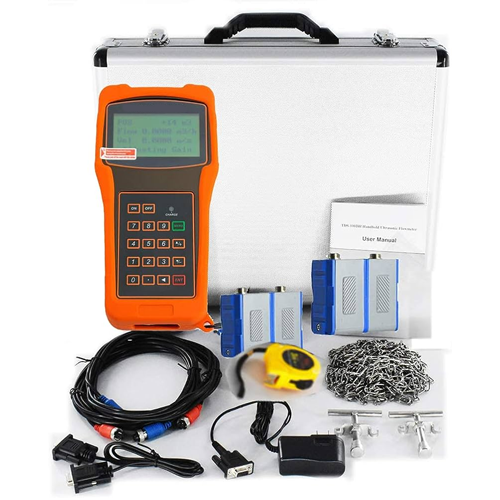

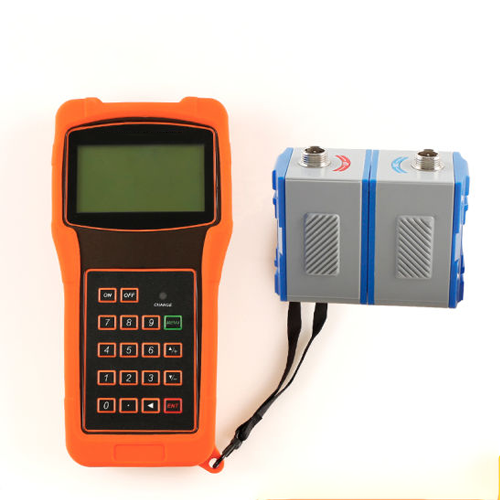

Hospitality Enviro Tech Clamp-On Ultrasonic Flow Meter for Small Pipes the first choice for small pipe diameters of DN 15 to DN 40: simple installation and convenient operation. There is no need to break the pipe or stop the construction for a long time, and the installation can be easily completed in a few minutes. The device adopts a new clip-on design that does not touch the measuring medium. It can avoid pressure loss and medium pollution caused by traditional flow meters. A variety of modes can be set, flexible and diverse. A set of machines can measure all calibers in the general range and is suitable for a variety of metal pipes and resin pipes. It can be selected as an ultrasonic cooling (heating) meter to monitor and measure energy consumption.
Features
• Large-screen LCD
• Non-contacting measuring
• Built-in data-logger
• Built-in rechargeable battery
• High accuracy measuring
• Wide measuring range
• Small and light
• RS-232 serial interface
Technical Specifications
| Linearity | 0.5 % |
| Repeatability | 0.2 % |
| Accuracy | ±1 % of reading at rates>0.2 mps |
| Response Time | 0 to 999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Pipe Size | 0.59 in to 236 in (15 mm to 6000 mm) |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4 x 8 Chinese characters or 4 x 16 English letters |
| Communication Interface | RS-232, band-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry. |
| Transducer Cord Length | Standard 196.85 in x 78.7 in (5000 mm x 2000 mm),optional 393.7 in x 78.7 in (10000 mm x 2000 mm) |
| Power Supply | 3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 8.26 in x 3.54 in x 1.18 in (210 mm x 90 mm x 30mm) |
| Handset Weight | 1.1 lb. (500 g) with batteries |
