Technical Specifications
| Connection | Clamp, flange, thread |
| Output Signal | 4 mA to 20 mA, RS485, HART |
| Diameter Nominal | DN 10 to DN 2000 |
| Power Supply | 24 V DC or 220 V AC or 3.6 V Lithium Battery |
| Precision Class | ±0.5% F.S |
| Operating Temperature | -13 °F to 302 °F (-25 ℃ to 150 ℃) |
| Ambient Humidity | 0% to 90% |

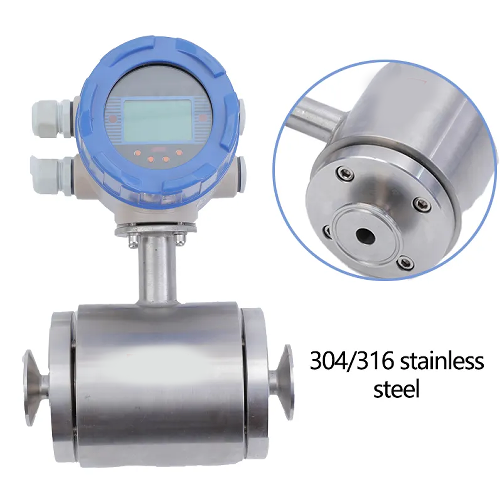

| Electrode Material | 316 L, Hb, Hc, Ti, Ta, Pt |
| Working Pressure | 87.02 PSI to 580.15 PSI (0.6 MPa to 4.0 Mpa) |
| Load Capacity | ≤500 Ω |
