Overview

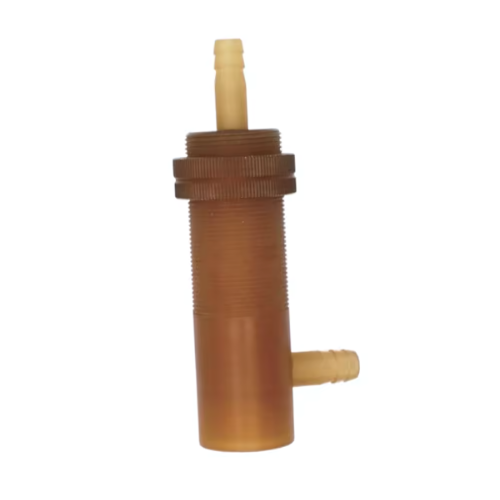

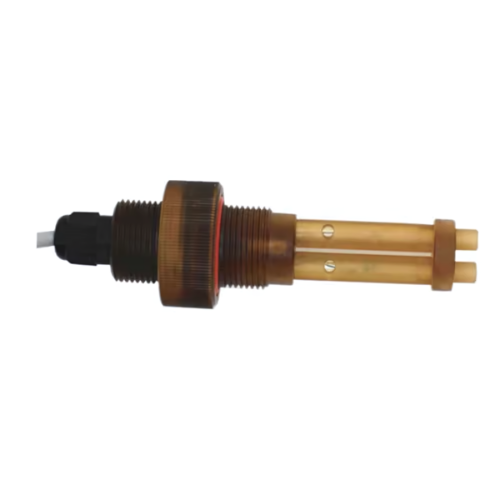

Hospitality Enviro Tech circulation type IP68 chemical concentration sensor with extended cable is circulation type sensor with IP68 rating, measures various chemical concentrations with ±1% accuracy, and supports calibration and temperature compensation.
Technical Specifications
| Measuring Mode | Circulation type |
| Electrode constant | Two poles, K = 30 |
| Housing Material | Polysulfide (PSU) or Glass + pt platinum black plating |
| Waterproof Rating | IP68 |
| Measuring Range | NaOH: 0 to 16 %; CaCL2: 0 to 22 %
NaCL: 0 to 10 %; HNO3: 0 to10 % HCL: 0 to 10 %; H2SO4: 0 to 10 % |
| Accuracy | ± 1 % F.S |
| Pressure Range | ≤ 0.3 Mpa |
| Temperature Compensation | NTC 10K, PT100, PT1000 |
| Calibration | Standard solution calibrates and field calibration |
| Connection methods | 2 core cable |
| Temperature Range | 32 °F to 176 °F (0 º C to 80 º C) |
| Cable length | Standard 393.70 in (1000 cm) cable, can be extended |
