Overview

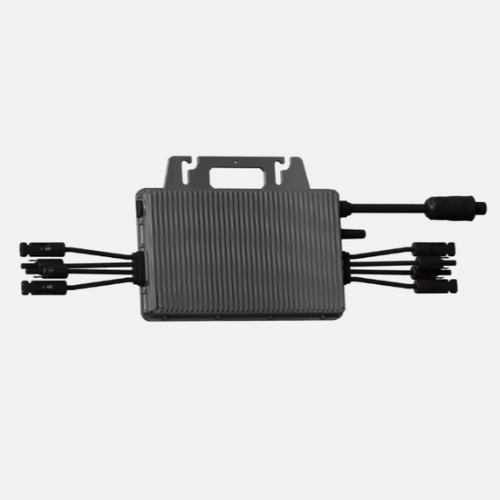

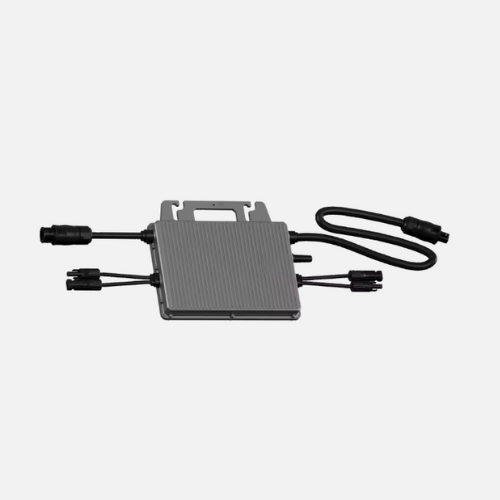

Hospitality Enviro Tech Balcony Solar Micro Inverter with Dual MPPT for Home Use is a highly efficient solution for residential solar energy applications. This product delivers reliable power conversion with an efficiency of up to 96.5%, making it ideal for maximizing solar energy utilization. Designed for single output, it supports a rated AC output power of 800W with a wide input voltage range of 25 to 55V and an output voltage range of 176 to 242V. This device is equipped with dual MPPT technology to enhance performance and adaptability in varying solar conditions. It also offers stable operation across 50Hz or 60Hz frequencies, ensuring compatibility in different regions. With a compact, lightweight design and an enclosure rated for reliable environmental protection, this product is perfect for balcony or small-scale solar installations.
Features
- High-efficiency inverter with 96.5% conversion rate
- Compact and lightweight design for easy balcony installation
- Dual MPPT technology for maximum solar energy harvest
- Wide input voltage range of 25V to 55V for flexible solar panel compatibility
- Stable AC output of 176V to 242V with 50Hz or 60Hz frequency support
- Supports up to 8 units per branch for scalable power systems
- Pure sine wave output ensures safe use with sensitive electronics
- Integrated protection against overcurrent, short circuit, and voltage fluctuations
- Quiet and reliable operation with durable enclosure for long-term use
- Ideal for residential solar setups, especially balcony solar applications
Technical Specifications
|
Input Voltage |
25 V to 55 V |
|
Output Voltage |
176 V to 242 V |
|
Output Current |
2.7 A |
|
Output Frequency |
50 Hz or 60 Hz |
|
Output Type |
Single |
|
Type |
DC or DC Converters, DC or AC Inverters |
|
Inverter Efficiency |
96.5% |
|
Rated AC Output Power |
800 W |
|
Maximum Units per Branch |
8 pcs |
|
MPPT Voltage Range |
25 V to 55 V |
|
Operating DC Voltage Range |
20 V to 60 V |
|
Max DC Short Circuit Current |
2 A × 19.5 A |
|
Max Input Current |
2 A × 13 A |
|
Number of MPPT or Strings per MPPT |
2 or 1 |
|
Enclosure Environment Rating |
— |
|
Weight |
7.72 lb (3.5 kg) |
|
Size |
8.35 in × 9.06 in × 1.57 in (21.2 cm × 23 cm × 4 cm) |
