Overview

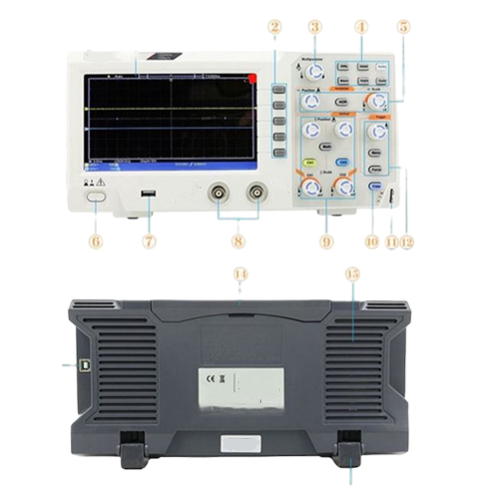

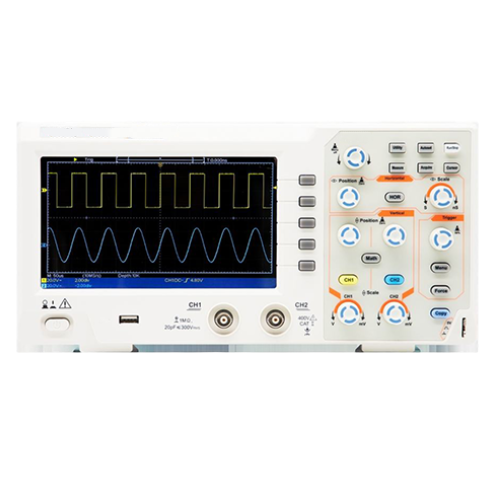

Hospitality Enviro Tech’s automatic test dso oscilloscope 2-channel 50 mhz bandwidth 500ms/s 10k storage depth 30 Digital Storage Oscilloscope is a super-economical type of digital storage oscilloscope. This product features a 2-channel design with 100 MHz or 50 MHz bandwidth. It comes in an ultra-thin body and is equipped with a 7-inch high-resolution LCD for clear waveform display. This device supports SCPI and LabVIEW, making it highly versatile for various applications. It is widely used in electronic circuit debugging, circuit testing, design and manufacturing, education and training, as well as automobile maintenance and testing.
Features
- Dual-channel digital storage design
- 50 MHz bandwidth for precise signal monitoring
- Real-time sample rate for accurate waveform capture
- Large 7-inch TFT LCD with high resolution
- Compact and ultra-thin body for portability
- Easy-to-use interface with one-button measurement options
- USB connectivity for data transfer and upgrades
- Multiple waveform storage and display support
- Wide application use in labs, automotive, and training
Technical Specifications
| Bandwidth | 50 MHz, 100 MHz |
| Channels | 2 |
| Sample Rate | 100 MS/s, 500 MS/s |
| Horizontal Scale (s/div) | 5 ns/div to 1000 s/div (1-2-5 steps) |
| Rise Time (typical) | ≤17.5 ns |
| Display | 7 in color LCD, 800 x 480 pixels |
| Input Impedance | 1 MΩ ±2%, in parallel with 20 pF ±5 pF |
| Channel Isolation | 50 Hz: 100:1, 10 MHz: 40:1 |
| Maximum Input Voltage | 400 V (PK to PK) (DC + AC, PK to PK) |
| DC Gain Accuracy | ±3% |
| Record Length | 10 K |
| DC Accuracy (average) | ≥16: ± (3% reading + 0.05 div) for triangle V |
| Probe Attenuation Factor | 1X, 10X, 100X, 1000X |
| LF Respond (AC, -3 dB) | ≥10 Hz (AC coupling, -3 dB) |
| Sample Rate or Relay Time Accuracy | ±100 ppm |
| Interpolation | sin(x)/x |
| Interval (triangle T) Accuracy | Single: ± (1 interval time + 100 ppm x reading + 0.6 ns); Average>16: ± (1 interval time + 100 ppm x reading + 0.4 ns) |
| Input Coupling | DC, AC, GND |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
| Vertical Sensitivity | 5 mV/div to 5 V/div |
| Trigger Type | Edge, Video |
| Trigger Mode | Auto, Normal, Single |
| Trigger Level | ±5 divisions from screen center |
| Line or Field Frequency (Video) | NTSC, PAL, SECAM |
| Cursor Measurement | △V, △T between cursors |
| Automatic Measurements | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A-B, Delay A-B, area, cycle area |
| Waveform Math | +, -, x, ÷, invert, FFT |
| Waveform Storage | 16 waveforms |
| Lissajous (Bandwidth) | Full bandwidth |
| Phase Difference Accuracy | ±3 degrees |
| Communication Interface | USB host, USB device |
| Frequency Counter | Available |
| Power Supply | 100 V to 240 V AC, 50/60 Hz, CAT II |
| Power Consumption | <15 W |
| Fuse | 2 A |
| Working Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Relative Humidity | ≤90% RH |
| Dimension | 11.85 in x 5.98 in x 2.75 in (30.1 cm x 15.2 cm x 7 cm) |
| Weight | 2.42 lb (1.1 kg) |
