Overview

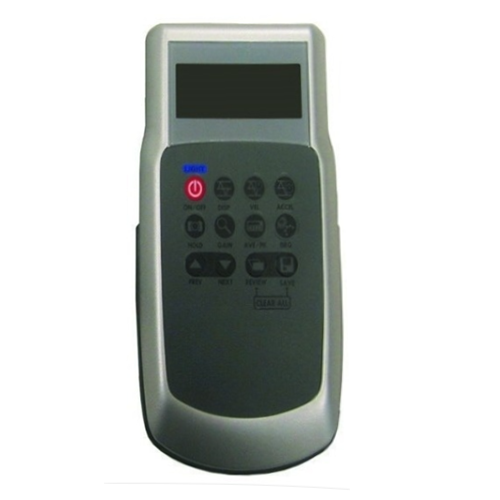

Hospitality Enviro Tech advanced vibration meter with memory and bearing check is an ideal tool for obtaining spot measurements of machinery Vibration. The meter uses an RMS detector, and can switch between RMS or peak units Displacement, velocity, and acceleration modes allow a user to perform basic vibration analysis. The robust high temperature accelerometer sensor has a removable magnetic mounting base for attachment of a stinger. The Sensor is internally protected against thermal shock, electrical Noise and amplitude overload. The handy carrying pouch keeps the meter out of the way, yet ready for use. When it’s time to take a reading, simply place the Accelerometer on your machine and tilt the pouch up to view Display.
Features
- Microprocessor-based measurements
- Accurate, industrial standard piezoelectric accelerometer sensor
- Replaceable coiled cord
- Backlit LCD read out in acceleration, velocity and displacement
- Sensor, cable rated 250°F
- Sensor bias indication
- Standard 9V battery included
- True RMS detection
- Displays peak or RMS units
- English or Metric units
- Optional headphones
- Hard and soft cases include
- Memory capability
- Bearing check
- 10X gain function
- Hold, Peak and Average Functions
Technical Specifications
| Displacement | 0-78.7 mil or 0-1999 um, p-p (10 to 1000 HZ) |
| Velocity | 0 to 7.87 in/sec or 0 to1999.9 mm/s, 0- pk, 10 to 10000 HZ, ISO 2954 |
| Acceleration | 0 to 19.99 g, rms, 10 Hz HP |
| Accuracy | 5 % (10 to 10 kHz) |
| Battery Indicator | Low, 25 %, 50 %, 75 %, full |
| Sensor Indicator | Bias, Normal/ Open/ Short Graphical Indicator |
| Back light | LED Back light, auto off five minutes after pressing any key |
| Sensor Sensitivity | 100 mVg +- 30 % adjustable |
| Housing Rating | IP65, with EMI protection |
| Power supply | 9V alkaline battery (Approx. 30 hours operation) |
| Display | 120 x 32 graphic mode LCD |
| Bearing conditions | 0 to 7.87 in/sec or 0 to 199.9 mm/s, 0 – pk, 500 Hz to 2 kHz |
| Functions |
Review: Recall and display saved data |
| Gain | X 10, multiplier increases the precision by 1 decimal place |
| Memory | Up to 1000 points |
| Temperature rating | 14°F to 140°F (-10°C to 60°C)
|
| Dimensions | 7.1 in x 3.6 in x 1.2 in (18 cm x 9.2 cm x 3.2 cm) |
| Weight | 10.6 oz (300 g) including battery |
