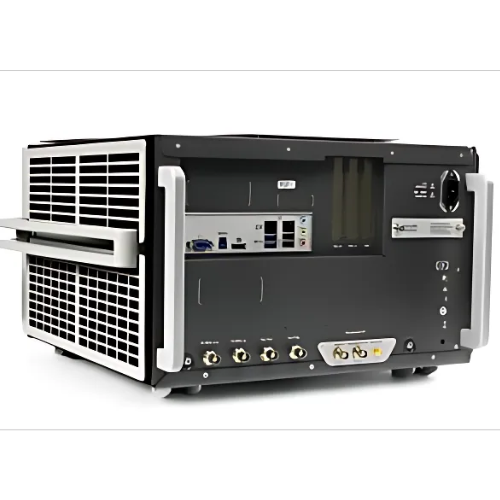

Advanced High-Speed Oscilloscope with 8 GHz Bandwidth – Hospitality Enviro Tech

Overview

Hospitality Enviro Tech advanced high-speed oscilloscope with 8 ghz bandwidth oscilloscopes incorporate innovative technology designed to deliver superior measurements. Whether you are testing multiple high-speed serial lanes or a massive parallel bus, the new 12.5 Gb/s, exceptionally long 160-bit hardware serial trigger and fast 20 GSa/s digital channels will provide timely validation and debug. Our oscilloscope’s low-noise front end technology, advanced InfiniiMax Ultra probe delivers up to 25 GHz bandwidth with an RC input impedance profile, providing the extremely low mid-band loading necessary to address modern high speed probing requirements. It also supports InfiniiMode and has a user-defined AC calibration mode, a wider input voltage range, more accuracy with unique S-parameter characterization, lower capacitive loading, a wider input voltage range, micro / socketed probe heads for smaller density probing, and more bandwidths. Together with the broadest software solution coverage, the Hospitality Enviro Tech helps you achieve clarity faster in your design characterization to ensure your product ships on time.

Features

• 8 GHz analog bandwidth (upgradable)
• 4 analog plus 16 digital channels
• Capture a longer signal trace with up to 80 GSa/s sample rate and 2 Gpts of acquisition memory
• Low noise (1.04 mVrms at 50 mV/div) and jitter measurement floor (100 fs)
• See better measurement accuracy with ENOB values in excess of 5.5 and a SFDR exceeding 50 dBC
• Access the broadest range of jitter, trigger, analysis and protocol tools (featuring Precision Probe)

Technical Specifications
