Features

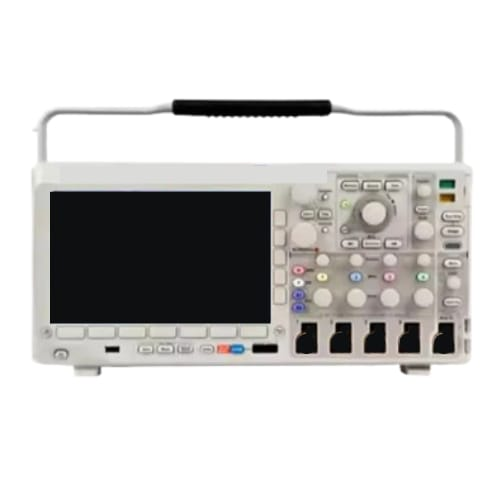

- 4-channel high-speed oscilloscope with up to 1GHz bandwidth and 5GSa/s sampling rate
- Deep memory of 56Mpts with advanced waveform capture capability
- Intuitive Windows-based interface with multi-control operation options
- Built-in signal source and comprehensive trigger system for precise testing
- DPX real-time acquisition technology for fast and accurate signal analysis
- Supports connectivity with logic analyzers and external PCs for integrated testing
Technical Specifications
| Specification | Details |
| Oscilloscope Type | Digital Fluorescence Oscilloscope |
| Channels | 4 |
| Structure | Desktop |
| Applications | Voltage, Frequency, Phase, Power, Impedance, and Temperature Measurements |
| Sampling Mode | Real-Time Sampling |
| Bandwidth | Up to 1GHz |
| Sampling Rate | 5GSa/s |
| Waveform Capture Rate | 85,000 wfms/s |
| Memory Depth | 56Mpts |
| Trigger Modes | Conventional |
| Signal Source | Built-in |
| Display Screen | 10.4-inch color display |
| Operating System | Windows-based platform |
| Connectivity | LAN, USB, GPIB, and Serial connections |
| Temperature (Operating) | 32°F to 104°F (0°C to 40°C) |
| Weight | 6.6 lb (3 kg) (approximate) |
| Dimensions (L × W × H) | 11.8 in × 5.9 in × 11.8 in (approximate) |
