Overview

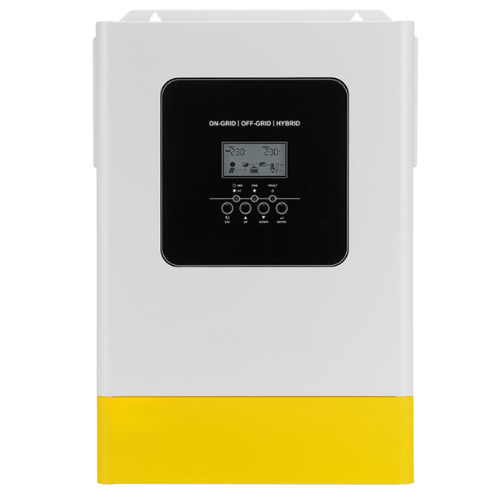

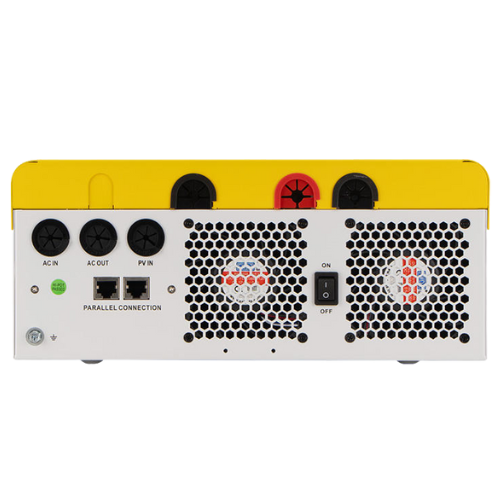

Hospitality Enviro Tech 48V Commercial-Grade Hybrid Solar Inverter is a high-performance solution designed for reliable energy conversion and storage. This product delivers an impressive inverter efficiency of 98%, ensuring maximum utilization of solar energy. With a maximum PV array power of 6500W and MPPT voltage tracking range of 60V to 500V DC, it provides excellent adaptability to varying solar input conditions.This device supports both solar and AC charging, offering a maximum solar charge current of 120A and AC charge current of 80A, making it versatile for different energy needs. It operates with a 48V battery system and includes a floating charge voltage of 54V, which enhances battery life and stability. Built with a pure sine wave output and a power rating of 6.2kW, this product ensures clean and stable electricity for sensitive equipment.Compact and durable, this product is suitable for residential, commercial, or industrial use where dependable off-grid or hybrid energy solutions are required.
Features
- High inverter efficiency of 98% for maximum energy utilization
- Pure sine wave output ensures stable and reliable power delivery
- Supports up to 6500W PV array power for larger solar installations
- Wide MPPT voltage range (60V to 500V DC) for flexible solar input
- Maximum solar charge current of 120A for faster battery charging
- Dual charging support: Max AC charge current 80A and Max solar charge current 120A
- Rated for 48V battery systems with floating charge voltage of 54V
- Compact and durable design: 17.7 in x 11.8 in x 5.1 in (450 mm x 300 mm x 130 mm)
- Lightweight for its capacity: 26.5 lb (12 kg)
- Operates with single-phase 220/230VAC ± 5% output at 50/60Hz
Technical Specifications
| Input Voltage | 170 V to 280 V |
| Output Voltage | 220 V or 230 VAC ± 5% |
| Output Current | — |
| Output Frequency | 50 Hz or 60 Hz |
| Output Type | Single |
| Type | Hybrid Inverter |
| Inverter Efficiency | 98 % |
| Solar Charger Type | MPPT |
| Max. PV Array Power | 6500 W |
| PV Array MPPT Voltage Range | 60 V to 500 V DC |
| Max. Solar Input Current | 27 A |
| Max. Solar Charge Current | 120 A |
| Max. AC Charge Current | 80 A |
| Max. Charge Current | 120 A |
| Battery Voltage | 48 V |
| Floating Charge Voltage | 54 V |
| Waveform | Pure Sine Wave |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Weight | 26.5 lb (12 kg) |
| Size/Dimension | 17.7 in x 11.8 in x 5.1 in (450 mm x 300 mm x 130 mm) |
