Features
- 4 channels
- AC, DC and GND input coupling
- Sinx (x)/x interpolation

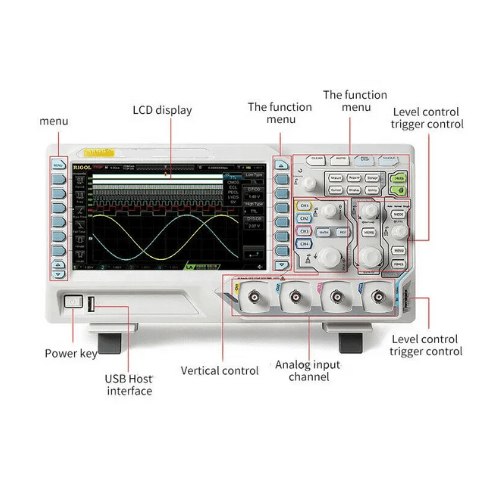

- LCD display
Technical Specifications
| Type | Digital oscilloscope |
| Bandwidth | 50 MHz |
| Maximum wave form capture rate | Up to 30,000 wfms/s |
| Maximum memory depth | 12 Mpts (standard), 24 Mpts (option) |
| Minimum pulse width sampling rate | 10 ns |
| Highest real-time sampling rate | Analog channel: 1 gsa/s (channel>, 500 msa/s (dual channel, 250 msa/s (3/4 channels) Digital channels: 1 gsa/s (8 channels), 50 omsa/s (16 channels) |
| The highest rate of waveform capture | 30000 wfms/s |

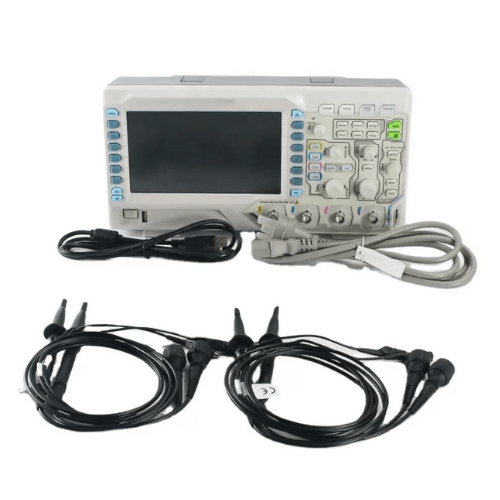

| The standard probe | 150 MHz RP 2200 passive agent pointed |
| High resolution | The highest 12 bit |
| Input impedance | Die from: (1 M 0 ± 15) ll (15 pf ± 3 pf); digital (100 k 0 ± 1%) ll (Bpf ± 3pf) |
| Attenuatioco efficient of the probe | Analog channel: 0.01 X to 1000 X 1 to 2 to 5 |
| Maximum input voltage | Analog channel: 300 Vrms, 100 Vrms The transient overvoltage 1000 Vpk use RP 2200, 10:1 the loss of elbow; 300 VRMS digital channels: 40 VRMS transient love Vpk 800 |
| Dimensions | 12.3 in x 6.3 in x 4.8 in (313.1 mm x 160.8 mm x 122.4 mm) |
| Weight | 11.02 Ib (5 Kg) |
