Overview

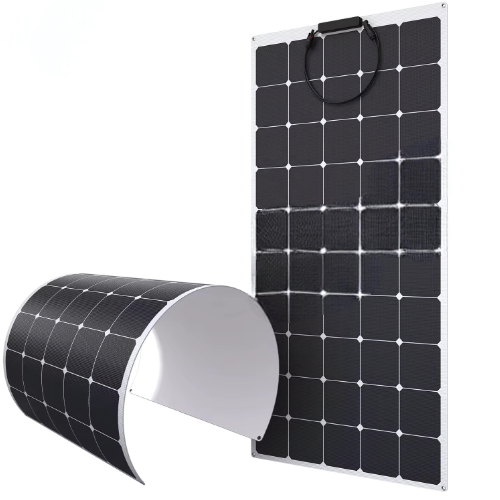

170 W 27.5 V ETFE Sun power Cells Salt Spray Corrosion Resistance Semi Flexible Solar Panel for Marine RVs Campervans Yachts Cars.
Technical Specifications
| Maximum Power (Pmax) | 170 W |
| Maximum Power Voltage (Vmp) | 27.5 V |
| Open-Circuit Voltage (Voc) | 33.0 V |
| Maximum Power Current (Imp) | 6.18 A |
| Short-Circuit Current (Isc) | 6,65 A |
| Cells Efficiency (%) | >23 % |
| Maximum Series Fuse Rating | 20 A |
| Maximum System Voltage | 600 V DC (IEC) |
| Operating Temperature | – 40 °F to 185 °F (- 40 °C to 85 °C) |
| Nominal Module Operating Temperature (NOMT) | 105.8 °F ± 3.6 °F (41 °C ± 2 °C) |
| Temperature Coefficient Of Pmax | – 0.194 % or °F (- 0.35 % or ℃) |
| Temperature Coefficient Of Voc | – 0.15 % or °F (- 0.27 % or ℃) |
| Temperature Coefficient Of Isc | +0.027 % or °F (+0.048 % or ℃) |
| Solar Cell | SunPower Maxeon GenIII Solar Cells 4.92 in x 4.92 in (125mm x 125mm) |
| Number Of Cells | 50 (5 x 10) |
| Module Dimensions | 52 in x 25.98 in x 0.11 in (1320 mm x 660 mm x 2.8 mm) |
| Weight | 6.5 lbs (2950 g) |
