Overview

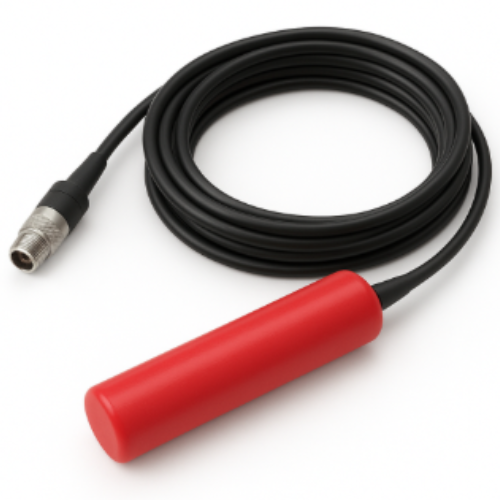

The Hydrophone 10Hz with KCK Screw Fit Male Connector is a high-sensitivity underwater sensor designed for reliable acoustic monitoring and sound detection in marine environments. Built with a durable PVC housing and equipped with a secure KCK connector, this hydrophone ensures stable performance even at depths of up to 100 meters.With a natural frequency of 10 Hz ± 10% and voltage sensitivity of 11 V/bar ± 1.5 dB, it delivers accurate data for applications such as oceanographic research, underwater surveillance, acoustic testing, and environmental monitoring. The compact 1-meter design and included lead cable make installation straightforward, while its rugged build guarantees consistent operation in temperatures ranging from 0°C to +35°C.
Features
- High Sensitivity
- Natural Frequency
- Secure Connector
- Wide Depth Range
- Rugged Design
- Temperature Tolerance
- Compact & Lightweight
- Flexible Cabling
- OEM Support
Technical Specifications
| Natural Frequency | 10 Hz (±10%) |
| DC Resistance (DCR) | 160 ohm (±10%) |
| Damping | 0.7 (±10%) |
| Voltage Sensitivity | 11 V/bar ±1.5 dB |
| Test Temperature | 77 °F (25 °C) |
| Working Depth | 0.98 ft to 328.08 ft (0.3 m to 100 m) |
| Cable Length | As per requirement |
| Connector Type | As per requirement |
| Operating Temperature | 32 °F to 95 °F (0 °C to +35 °C) |
| Weight | 18.70 oz (530 g) |
| Size | Length: 6.22 in (158 mm) with caseDiameter: 2.36 in (60 mm) with case |
