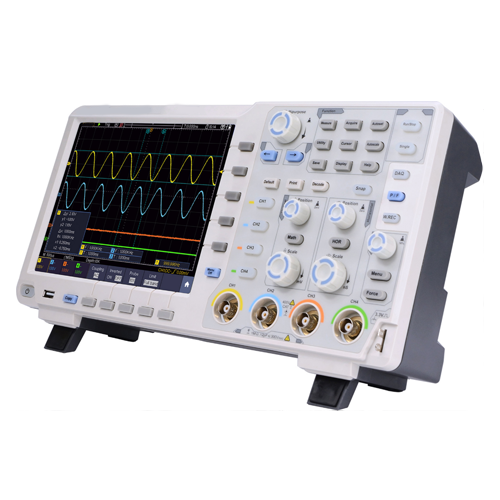

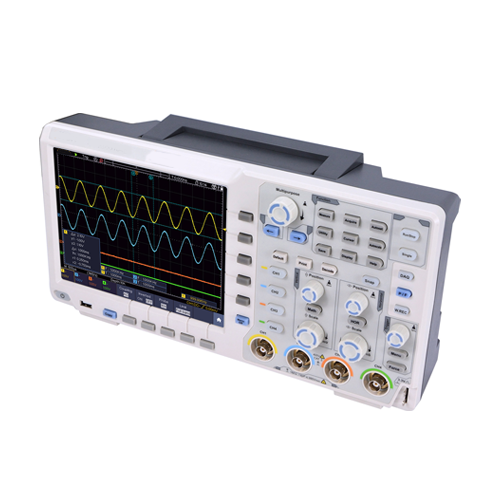

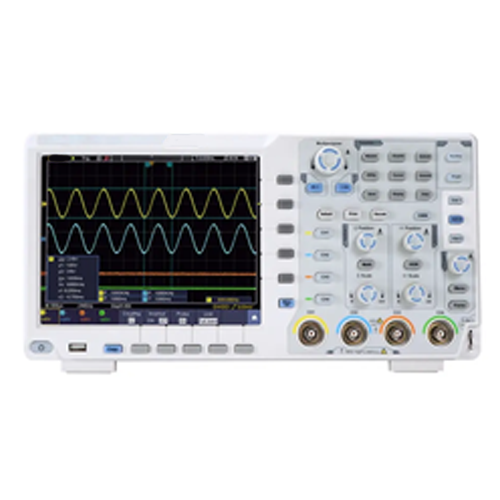

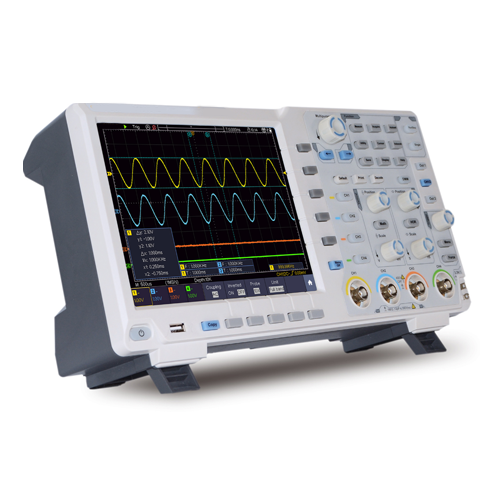

Features
- 100MHz Bandwidth,1GS/s sample rate,4 Channels
- 40M record length 45,000 wfms/s waveform refresh rate

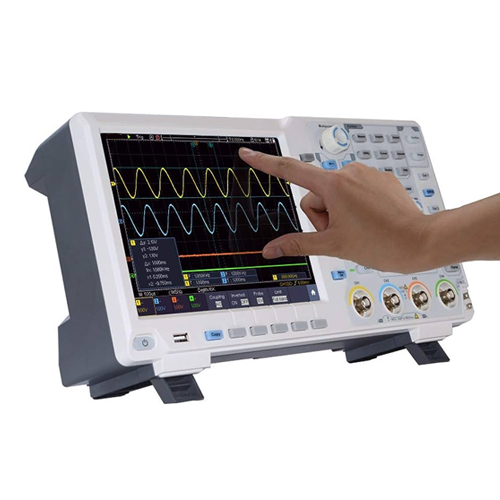

- 8-inch 800 x 600 high-resolution LCD, optional multi-touch screen
- SCPI and LabVIEW supported
- Multi-trigger and bus decoding function (Optional)

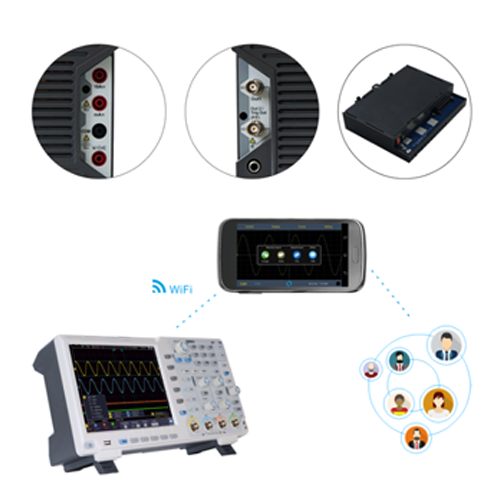

- Multi-interface: USB host, USB device, USB port for Pict Bridge, LAN, AUX and VGA(Optional)
Technical Specifications
| Bandwidth | 60 MHz, 100 MHz |
| Sample Rate | 1 GS/s |
| Vertical Resolution (A/D) | 8 bits, 14 bits |
| Record length | 40 M |
| Waveform Refresh Rate | 45,000 wfms/s |
| Horizontal Scale | 2 ns/div to 1000 s/div, step by 125 |
| Channels | 4 |
| Display | 8 in (203.2 mm) color LCD, 800 x 600 pixels |
| Relay Time Accuracy | ±1 ppm |
| Input Coupling | DC, AC, GND |
| Vertical Sensitivity | 1 mV/div to 10 V/div (at input) |
| Trigger Type | Various types |
| Trigger Mode | Auto, Normal, Single |
| Vertical Range | Specific ranges |

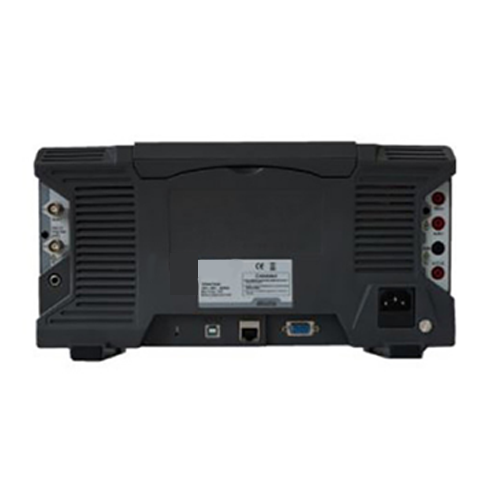

| Communication Interface | USB host, USB device, USB port for Pict Bridge, Trig Out (P/F), LAN, VGA (optional) |
| Frequency Counter | Available |
| Power Supply | 100 V to 240 V AC, 50/60Hz, CAT II |
| Fuse | 2 A, T class, 250 V |
| Battery (optional) | 3.7 V, 13200 mA |
| Dimension (W×H×D) | 13.39 in × 6.97 in × 3.54 in (340 mm × 177 mm × 90 mm) |
