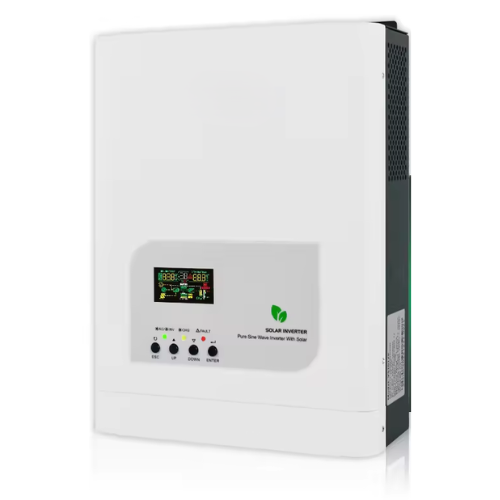

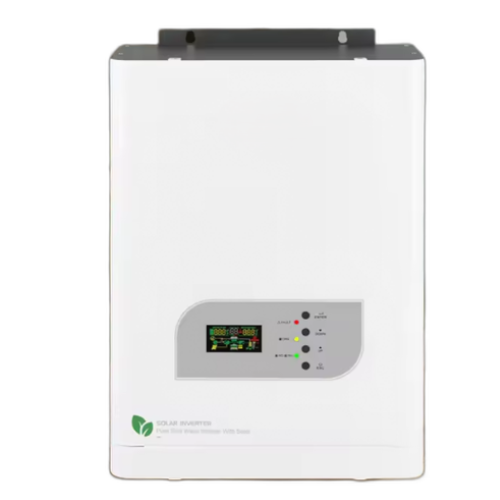

1.5 KVA 1500 VA 12 V 1200-watt Pure Sine Wave Off-Grid Solar Inverter with PWM – Hospitality Enviro Tech

Supports up to 800W PV array power with a maximum PV voltage of 150 V DC and a 15 V DC to 50 V DC range. PWM controller, 60 A solar charging, and 29 A AC charge.

SKU: HETI-109 Category:

Technical Specifications

Input Voltage 154 VAC to 264 VAC ± 3 V
Output Voltage 220 VAC ± 10 %
Output Current Dependent on connected load and conditions
Output Frequency 50 or 60 Hz ± 1%
Waveform Pure Sine Wave
Maximum PV Array Power 800 W
Maximum PV Voltage 150 VDC
PV voltage range 15 vdc to 50 vdc
Controller type PWM
Maximum solar charging current 60 A
Maximum AC Charge Current 29 A
Weight 16.7 lbs. (7.58kg)
Size 16.9 in x 12.99 in x 6.69 in (43 cm x 33 cm x 17 cm)
