Overview

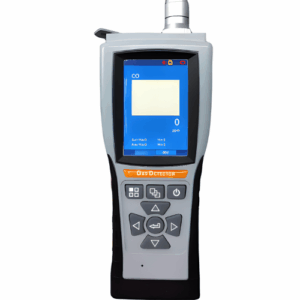

Hospitality Enviro Tech formaldehyde gas leakage detector alarm system gas leakage detector to measure formaldehyde CH2O with pump built in. It adopts 2.31 inch high-definition color screen for real-time display and adopts gas sensors of well-known brands in the industry. It is used to quickly detect the concentration of various gases and the measurement of ambient temperature and humidity, and alarm if the measurement exceeds the limit. It is suitable for detecting gas concentration in pipelines or confined spaces and atmospheric environments gas leakage or high concentration single gas purity where various background gases are nitrogen or oxygen. There are more than 500 kinds of detected gases.

Features

It can detect 1 to 4 kinds of gasesat the same time, and the unit can be switched
Built-in pumping measurement, integrated water vapor, and dust filter
Rich man-machine interface
Large-capacity data storage function, supports multiple storage methods
High-temperature gas detection (optional)
Three display modes can be switched
Graphic display
Data recovery function
Can set to display the maximum, minimum, and average values.
Standard USB charging, with a charging protection function, supports USB
Using 4500 mA large capacity rechargeable polymer battery
High-precision temperature and humidity measurement (optional).
Support real-time detection or timing detection
Multiple alarm methods, a multi-directional three-dimensional indication of alarm
Multiple alarm mode settings
Mistaken operation recognition function
Zero-point automatic tracking, long-term use will not be affected by zero
Multi-level calibration of target points to ensure linearity
Logging
Meet the design requirements of intrinsically safe circuits, anti-static, etc
Protection grade reaches IP65, waterproof, dustproof, explosion, etc

Technical Specifications

Detection Gas	Formaldehyde CH2O
Scope Of Detection	0 Ppm To 10 Ppm, 20 Ppm, 50 Ppm, 100 Ppm, 200 Ppm, 500 Ppm, 1000 Ppm, 2000 Ppm, 5000 Ppm
Resolution	0.01 Ppm,0.1 Ppm,1 Ppm
Detection Principle	Electrochemical Principles
Detection Method	Built-In Pump Suction, Flow Rate 500 Ml Per Min
Display Method	2.31-Inch 320 X 240 High-Definition Color Screen Display, 5 Buttons Operation
Detection Accuracy	≤±3% FS
Linearity	≤±2%
Repeatability	≤±2%
Alarm Method	Sound And Light Alarm, Vibration Alarm, Visual Alarm, Sound And Light + Vibration + Visual Alarm, Shut Off The Alarm
Response Time	≤20 S
Recovery Time	≤30 S
Power Supply	DC 3.6 V
Battery Capacity	3.6 V DC, 4500 Ma Large Capacity Rechargeable Polymer Battery, With Overcharge, Over-Discharge, Overvoltage, Overheating, And Short Circuit Protection Functions
Humidity Measurement	0% RH To 100% RH, Accuracy 3% RH
Data Storage	Standard Configuration Of 100,000 Data Capacity, Support History Viewing, Deletion Or Data Export, Free Host Computer Communication Software. The Storage Function Is Off By Default, And Can Be Set To On, And The Storage Time Interval Can Be Set Arbitrarily.
Communication Interface	USB (Charging And Communication), Optional With Extra Charge RS 485 Or RS 232 Communication Interface

Explosion Proof Type	Intrinsic Safe
Explosion Proof Mark	Exdct 6
Protection Level	IP65, Dust And Splash-Proof
Standard Accessories	Manual, Certificate Of Inspection And Warranty Card, USB Charger (Including Data Cable), Aluminum Alloy Box, Alligator Clip, Host Computer Communication Software, 1PC Humidity Dust Filter
Optional Accessories	Temperature And Humidity Measurement Function, 3.93 Ft (1.2 M) Retractable Sampling Probe 3.28 Ft To 32.80 Ft (1 M To 10 M) Hose, Standard Length 3.28 Ft (1 M), High-Temperature Sampling Probe, High Temperature And High Humidity Pretreatment System, Spare Humidity Dust Filter.
Application Occasions	Petroleum, Chemical, Pharmaceutical, Environmental Protection, Flue Gas Analysis, Air Treatment And Other Occasions Where Gas Concentration Needs To Be Detected.
Use Environment	Temperature -40 °F To 158 °F (-40 ℃ To 70 ℃) Relative Humidity ≤0% RH To 99% RH (Built-In Filter Can Be Used In High Humidity Or High Dust Environment)
Sample Temperature	-40 °F To 158 °F (-40 ℃ To 70 ℃), Optional With Extra Charge High Temperature Sampling Probe, Can Detect The Flue Gas Concentration Of 400 Degrees Or Higher
Temperature Measurement	-40 °F To 248 °F (-40 ℃ To 120 ℃) Accuracy: 32.9 °F (0.5 ºc)
Dimensions	6.29 In X 2.75 In X 1.10 In (160 Mm X 70 Mm X 28 Mm)
Weight	0.66 Lb (0.30 Kg)
